Business Type Supplier, Retailer, Wholesaler
Size 10x12ft, 2x6ft, 3x6.5ft
Thickness 0-20mm, 40-60mm, 60-80mm
Condition New
Click to view more

Preferred Buyer From

Location India ( Odisha)

Product Details

Finishing
Polished
Features
Anti Corrosive, Anti Dust, Anti Zunk, Durable, High Quality
Brand
Tata Pravesh

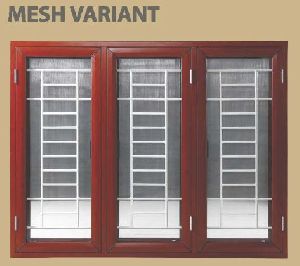

Pravesh windows have a steel casement along with a vision glass and are given a wood finish. The wide array of styles are both afiordable and  energy-efficlent. Windows are hinged and are opened or closed by swinging in or out. The casement locks are hook-shaped and embedded within the frame. whid1 makes them unbreakable.

Yes! I am interested


Garph

Garph

Specification

Items Material Specification
window Frames and Leaves Skin Pass Galvanized Iron Sheet (as per IS 513"D" Quality, Galvanized as per IS 277 with Hot Zinc Coating of 120 grams / Sq.Mtr & thickness of 0.0006m)
Wind ow Sh utter 0.0006m (24 SWG) thick skin pass Galvanized Iron Sheet
Window Frames 0.008m (22 SWG) thick skin pass Galvanized Iron sheet of size 0.08m X 0.045m
Mullion 0.008m (22 SWG) thick skin pass Galvanized Iron sheet of size 0.08m X 0.06m
Wsion Glass 0.004m clear float glass in rectangular shape. Height and width at least 0.0088m less than that of the shutter height and width
Finish Coated with Zinc Phosphate Primer orThermosetting Polyurethane paint of Aliphatic Grade providing high levels of scratch resistance and durability
MS Grill 0.01 m square MS bright bars
Accessories SS Pin type Hinges — 1 Set; Polypropylene Handle - 1; Friction Stay Powder Coated — 1; MS powder coated Tower bolt — 2 (Ethyl Propylene Diamine Monomer (EPDM) Should be used all around glass in shutter for fixing of glass); corner brackets — 4 (made of Polypropylene each per shutter and frame)
Assembly and Installation The Frame & Shutter Section should be cut to length and miterjoined with Corner Brackets made of Polypropylene. Mullion section should be joined with framel Mullion using Nut and Bolt, Ethyl Propylene Dlamlne Monomer(EPDM) Gasket should be used all around glass. Window Frame should be fixed to brickl concrete masonry by uslng Nylon self expanding sleeves and driving MS electroplated 0.006m X 0.095m ong screws into the sleeves through frame
